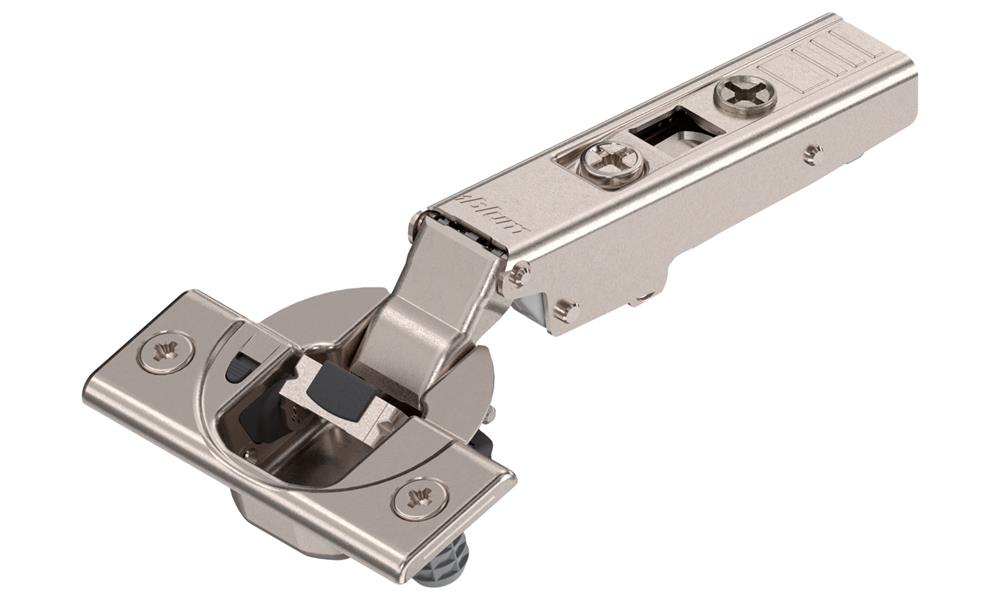

Blum 110° clip top hinge knock-in with built in blumotion

Quick Order Code: 77455 / Product Code: 71B3580

Rating: 5 / 5 - 1 Rating(s)

The integrated Blumotion hinge offers all the benefits of Clip-Top hinges along with integrated soft close.

Cover cap type	70T3504 – boss cover cap
Type of side adjustment	With screw
Type of depth adjustment	convenient with spiral screw
Item package	1 piece
diametre of fixing holes	8 mm
Maximum drilling distance	7 mm
Minimum drilling distance	3 mm
Fixed dimension / factory setting	11 mm
Weight	762.64 kg
collision measurement (hinge arm height)	21.5 mm
Cranking	Overlay application
Country of origin	AT
Delivery unit	250
Height Outside carton	26.4 cm
Layer quantity	2000
Lenght Outside carton	37.5 cm
Palette height without transport equipment	106 cm
Pallet quantity	8000
Replenishment lead time	2 day
Transport time	2 day
Volume/1000	120.84 dm³
Weight (tare)/1000	2.079 kg
Width Outside carton	29.9 cm
hinge variant	With integrated BLUMOTION
mounting plate system	CLIP
Colour/surface	Nickel plated
Opening angle	110
Closing mechanism	with spring
SAP-Distribution status	20 - On sale
SAP - Program allocation	SP - Stock Program
Side adjustment	+/- 2 mm mm
Depth adjustment	+ 3/- 2 mm mm
Boss assembly	knock-in
Boss material	Steel boss
boss finish	Nickel plated
Boss adjustment	none
door material	Wood
Gap	1.5 mm
Weight based on	10000 Piece
application	standard hinge
packaging	industrial packing
Packaging unit 1	250
Packaging unit 2	0
Packaging unit 3	0
Customs tariff number	8302100090
