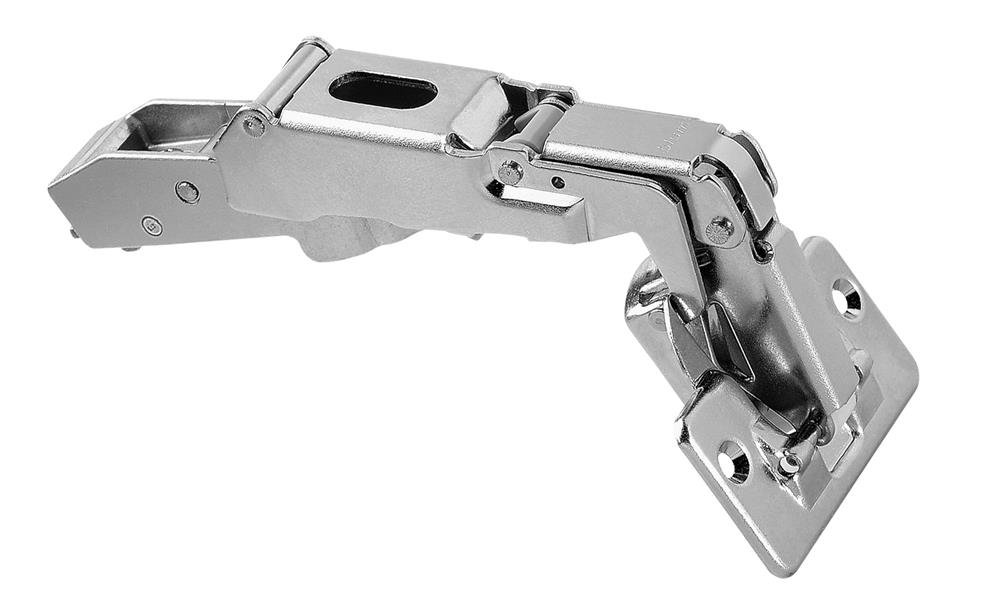

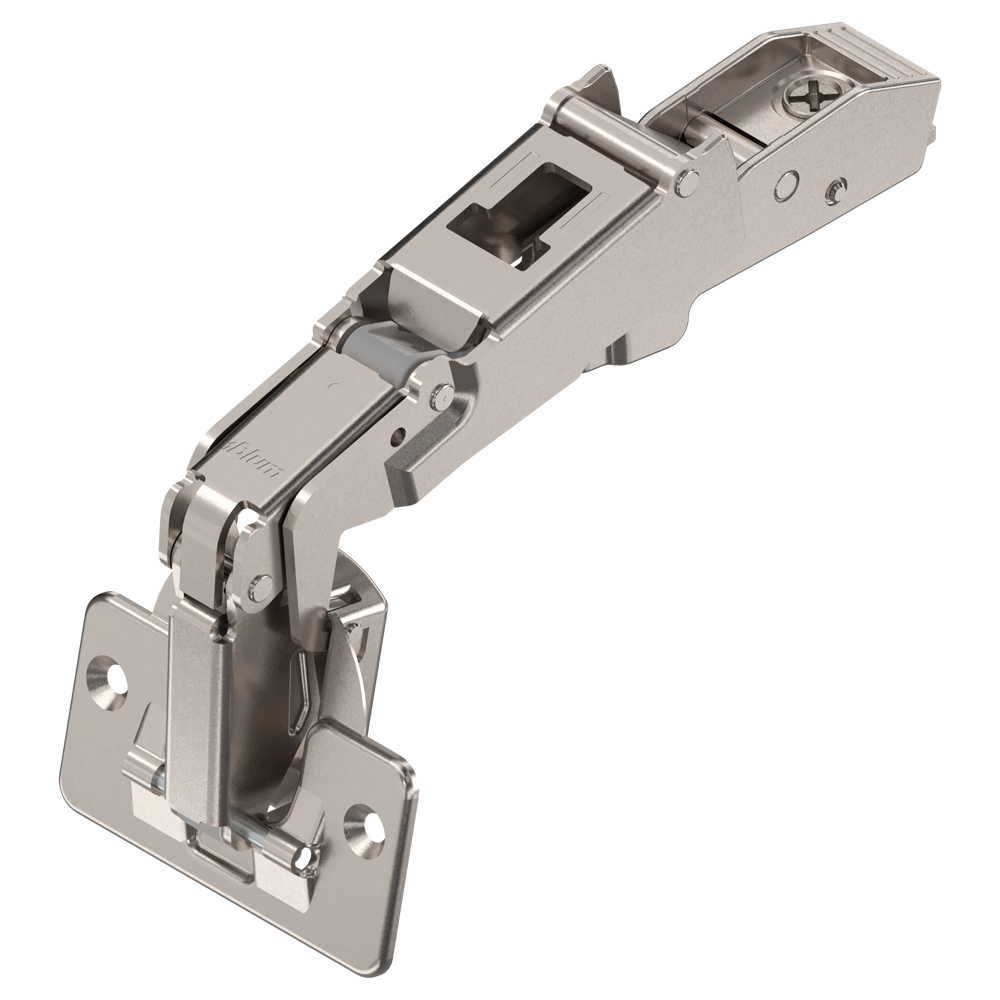

Blum Clip Top 170 degree hinge Unsprung

Quick Order Code: 94017 / Product Code: 70T6550

Blum Clip Top 170 degree hinge Unsprung.

Rating: 4.4 / 5 - 5 Ratings
£POA exc. VAT
Selling Unit: EACH

If you are using the this hinge in furniture that can be accessed by small children it should be noted that it is possible for small fingers to get in-between the working mechanism of the hinge. In these cases a 155° hinge could be used as an alternative or all relevant doors should be fitted with child safety latches. This warning should be passed on subsequent users of the product.

Opening170
FinishNickel
BossScrew on
OverlayFull
Closing MechanismUnsprung
Box Qty125
Cover cap type80.6507
Type of side adjustmentWith screw
Type of depth adjustmentconvenient with spiral screw
Item package1 piece
DampeningNone
Maximum drilling distance8 mm
Minimum drilling distance3 mm
Fixed dimension / factory setting11 mm
collision measurement (hinge arm height)65 mm
CrankingOverlay application
Packaging unit 125
Packaging unit 2125
Packaging unit 30
Weight (gross)170.704 kg
Weight (gross) based on1000
hinge variantwith free movement for TIP-ON
mounting plate systemCLIP
Colour/surfaceNickel plated
Opening angle170
product combinationNo
Closing mechanismunsprung
Side adjustment+/- 2 mm
Depth adjustment+ 3/- 2 mm
Boss assemblyscrew-on
Boss materialSteel boss
boss finishNickel plated
Boss adjustmentnone
door materialWood
Gap1.5 mm
applicationwide angle hinge
packagingCommercial packing
